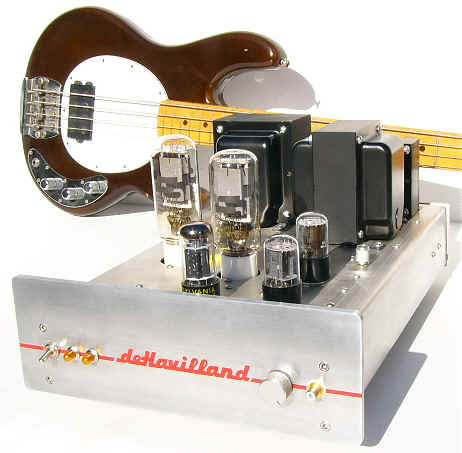

deHavilland Electra 572

75 Watt Triode Monoblock Amplifier

Product Information

Introducing the new deHavilland Electra 572 Directly Heated Triode amplifier.  The Electra 572 delivers 75 Watts RMS into 8  ohms. The deHavilland Electra is a 100% pure Class A  A/B triode  vacuum tube amplifier. The Type Svetlana 572 directly heated triode vacuum tube is justly famous for its huge soundstage, sweet tone, and authoritative presentation of music. The tube compliment combined with innovative circuitry maintains the right combination of pace, rhythm, and timing.. The deHavilland Electra 572 is designed to drive most low, medium, as well as high efficiency loudspeakers. The dynamic presentation is convincingly of an amplifier many times greater than it's rated output. Quality, Value, and Performance, by deHavilland, hand built in California  with a passion for sound.


Design Specifications


power output---------------------75 Watts RMS into 8 ohm

output class ---------------------Class A A/B

bandwidth  -----------------------20 Hz - 40 kHz

power triode  --------------------2 X Svetlana SV572

driver tube   ----------------------1 X 6BL7

voltage amp ---------------------2 X 6SN7/GTA/GTB

feedback  ------------------------zero negative feedback to adjustable 3 db

input impedance---------------50k ohms (Values from 10k to 500k available on request)

residual hum--------------------<2mv.

warm-up---------------------------automatic time delay for long tube life and gentle startup

dimensions-----------------------12"W x 18"L x 10"H

weight------------------------------58 lbs


Special Features


* Class A  A/B zero negative-feedback design

* Zero to 3 db variable feedback

* Point to point hardwired audio circuit

* Hovland Musicaps

* Silver teflon coated high purity copper wire

* Wonder Wire / Wonder Solder

* Kimber Cable

* Goldpoint stepped attenuators (optional)


Pricing-------------N/A Discontinued

"Hand made in California with a passion for sound since 1997"
