Early version Aries 845 amplifier



Later version Aries 845-G amplifier



"--- the midrange of the Aries-845 --- GLORIOUS! - acoustical instruments and the human voice are rendered with an ease and naturalness that rests and heals the spirit! A Ye Olde Editor's -- very highly recommended!"...more


  Legacy Products: deHavilland Aries 845 and 845-G


   product Information:


The Aries-845 is a 100% pure class A single-ended triode zero negative feedback amplifier. The Type 845 directly heated triode vacuum tube is justly famous for its sweet tone and authoritative presentation of music. The tube compliment combined with innovative circuitry maintains the right combination of pace, rhythm, and timing. The Aries-845 amplifier produces 22 watts, and is designed to drive medium, as well as high efficiency speakers. The dynamic presentation is convincingly that of an amplifier many times greater than it's rated power output


And think about reliability, with only three tubes per chassis,  diagnosing any tube problems that might occur after time is relatively simple. Quality, Value, and Performance, by deHavilland , hand built in California  with a passion for sound.



Aries-845 Review by David W . Robinson, Positive Feedback Online

Aries-845 Review By J.Peter Moncrieff, International Audio Review

Aries-845 Review by  Bob O'Neill, Bound For Sound

Aries-845 Review, by Marc Mikelson,Sundstage!

Aries-845 Review by John E. Johnson, Home Theater and Hifi Review


Show Reports

Aries-845 "Impressions" by David W. Robinson, Positive Feedback Magazine

deHavilland  Aries-845 "2001 JIMMY AWARD" By Jim Saxon

Bay Area Tube Festival Impressions" by Al Sekela

HVT Magazine 2001 CES Report by Theo Wubbolts

CES 2001 Report by  Charles McRobert


  design specifications:


power output                  22 Watts RMS into 8 ohms

output class                   Class A

bandwidth                      20-35kHz

power triode                   Type 845

driver tube                      6AV5

input tube                      6SN7

feedback                       zero negative feedback.

input impedance:            50k ohms. (Values from 10k

                                    to 500k available on request).

residual hum                 <2mv.

warm-up                       automatic time delay for long

                                    tube life, and gentle startup

dimensions                   12"w, 18"l, 10"h

weight                           57 lbs.


  special features:


* point-to-point hardwired audio circuit

* Electra-Print Co. transformers

* Edison-Price Copper binding posts

* Cardas Gold Rhodium RCA input jack

* Cardas Gold/Rhodium binding posts (optional).

* Hovland Musicaps

* Wonder Wire/ Wonder Solder

* Kimber Cable

* Clear anodized aluminum front and rear plates

* Paint filled engraved logo and beltline in red or black

* Black powder coated chassis

* Elma stepped attenuators (optional).

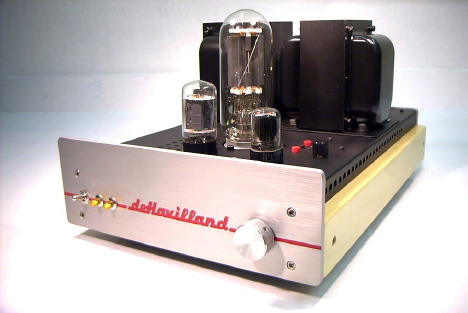

Standard features: Shown here with Cardas RCA input,  and Edison-Price binding posts. The front and rear 1/4"  plates are deep-anodized aluminum for maximum wear resistance.




 This model superceded by Aries 845-G.



"Hand made in California with a passion for sound since 1997"
